Turbosmart Fuel Pressure Regulators – FPR 10

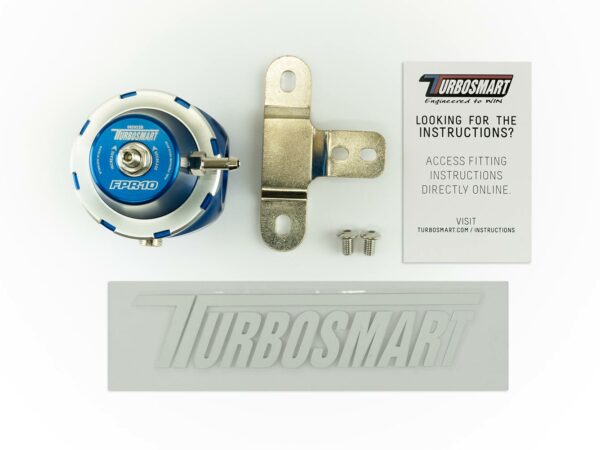

Included:
Fuel Pressure Regulator
Mounting bracket
2 x M5 Mounting Screws
Turbosmart Decal
Features
Stainless Steel Valve Seat
Suitable for all fuel types
1:1 Class Leading Ratio and Response
Adjustable Pressure
1/8 NPT Gauge / Pressure Sensor Port
Unique Locking Collar Design
Milspec Diaphragm
Detailed Specific Fuel Flow Data and Spec
The Turbosmart FPR10 Series provides market-leading fuel control and response via a true 1:1 ratio and superior flow and bypass capacity for vehicles with -10 / 10AN fuel systems. Utilising our Stainless Steel Valve Seat & Milspec Diaphragm, the FPR10 Series is suitable for all Fuel types, including Race Fuel and aggressive leaded fuels. Our FPR10 Range includes a 10AN inlet, outlet and returns port and is available in Standard (35psi to 80psi) and LP (3psi to 20psi) for Low Pressure and Carburettor Systems to suit 3000HP systems.
