Straight - Silicone Reducer

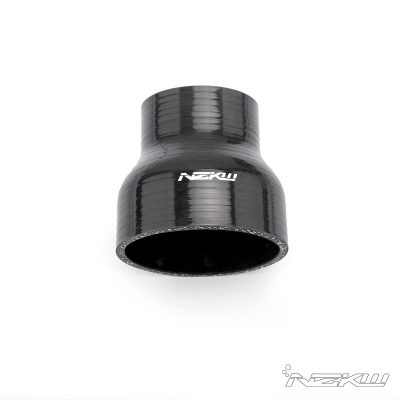

NZKW Straight- Silicone Reducer

Operative temperature: -40 to 220 C (428 F)
Pressure: 0.3 to 0.9Mpa
Standard color: Black
Size tolerance: 0.5mm

Sizes are listed as INSIDE DIAMETER measurement's

Available Sizes:

1.17/64″~1.27/64″ (32mm-36mm)

1.27/64″~1.37/64″ (36mm-40mm)

1-1/2″~1.49/64″(38mm-45mm)

1-1/2″~2″(38mm-51mm)

1.49/64″~2″(45mm-51mm)

2″~2-1/4″ (51mm-57mm)
2″~2-3/8″ (51mm-60mm)
2″-2-1/2″ (51mm-64mm)
2″~2-3/4″ (51mm-70mm)
2″~3″ (51mm-76mm)

2-1/4″~2-3/8″ (57mm-60mm)

2-1/4″~2.5″ (57mm-64mm)
2-1/4″~2-3/4″ (57mm-70mm)
2-1/4″~3″ (57mm-76mm)

2-3/8″~2-3/4″(60mm-70mm)

2-31/64"~3-17/64"(63mm-83mm)

2-31/64"~ 4"(63mm-102mm)

2-1/2″~2-3/4″ (64mm-70mm)
2-1/2″~3″ (64mm-76mm)
2-1/2″~3.25″ (64mm-80mm)
2-1/2″~3-1/2″(64mm-89mm)

2-3/4″~3″ (70mm-76mm)

2-3/4″~3-1/8″ (70mm-80mm)

2-3/4″~3-17/64" (70mm-83mm)

3″~3-1/8″(76mm-80mm)

3″~3-17/64"(76mm-83mm)

3″~3-1/2″ (76mm-89mm)

3″~4″ (76mm-102mm)

3-1/8″ ~3-1/2″ (80mm-90mm)

3-9/32″~3-1/2″ (83mm-90mm)

3-9/32″~4″ (83mm-102mm)

3-1/2″~4″ (89mm-102mm)
