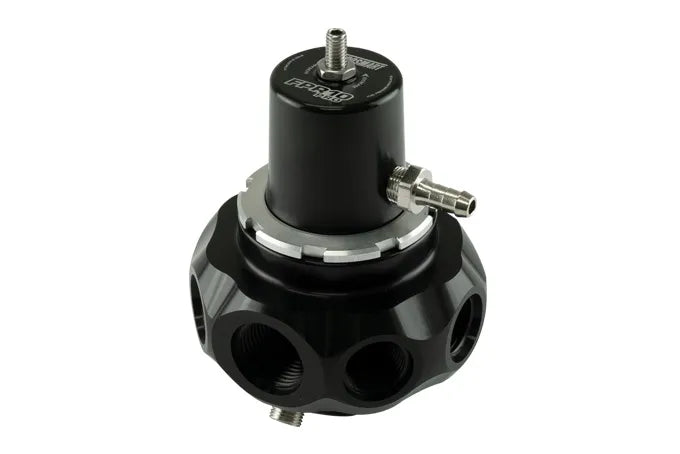

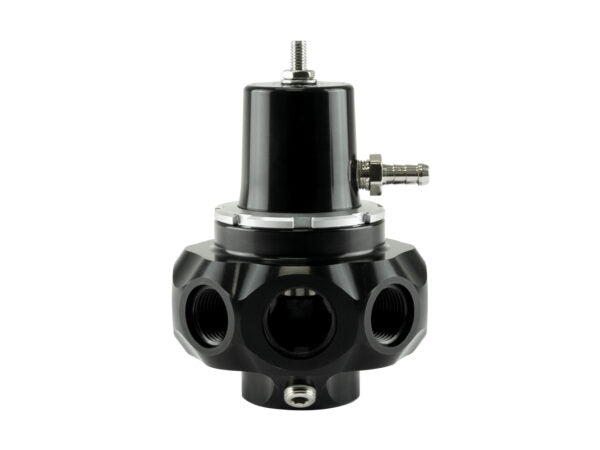

Turbosmart Fuel Pressure Regulators – FPR10 Pro 5 Port

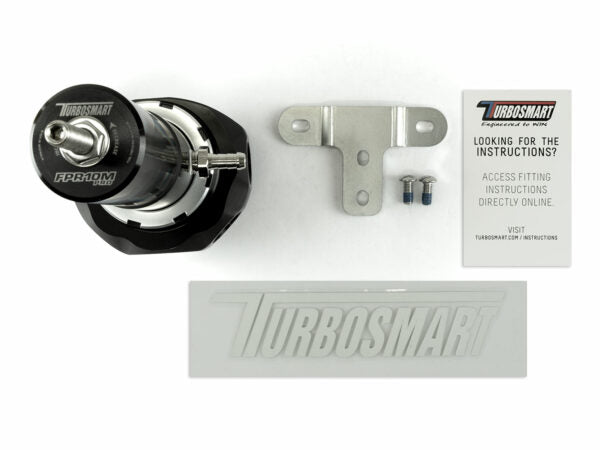

Included:
Fuel Pressure Regulator
Mounting bracket
2 x M5 Mounting Screws
Turbosmart Decal
Features
10AN Inlet and Return
4 x 8AN Fuel Distribution
Stainless Steel Valve Seat
Suitable for all fuel types
1:1 Class Leading Ratio & Response
Adjustable Pressure
1/8 NPT Pressure Sensor Port
Unique Locking Collar Design
Milspec Diaphragm
Detailed Specific Fuel Flow Data & Spec
Suits Up to 3000HP Systems.

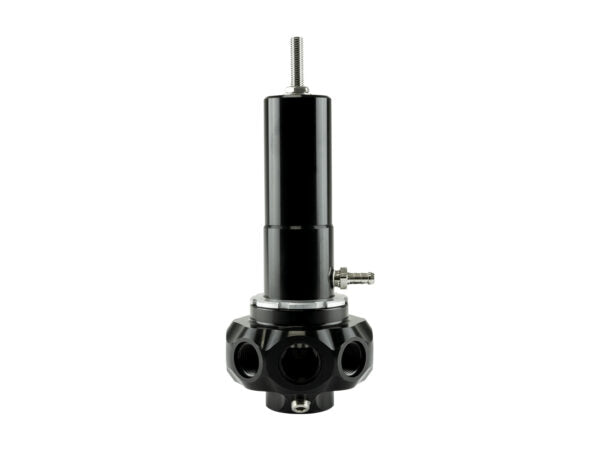

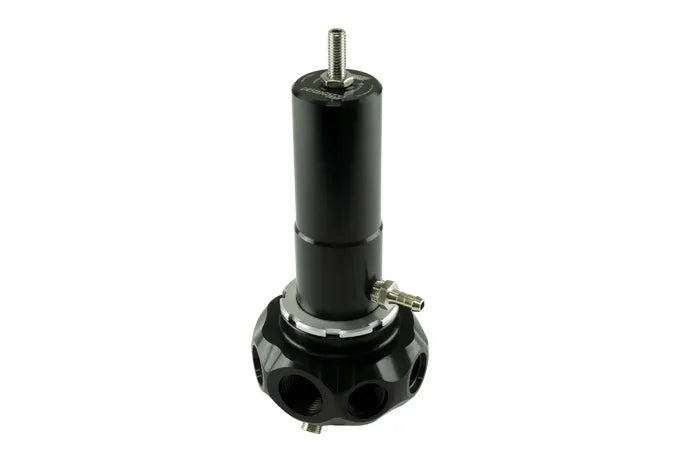

The Turbosmart FPR Pro 10 Series provides market-leading fuel control and response via true 1:1 ratio and superior flow and bypass capacity for vehicles with -10 / 10AN fuel feed and -10 / 10AN return fittings. Utilising our Stainless Steel Valve Seat & Milspec Diaphragm, the FPR10 Pro Series suits all Fuel types, including Race Fuel and aggressive leaded fuels. Our FPR10 Pro Range includes 1 x 10AN inlet, 4 x 8AN outlet ports and an 10AN return and is available in Pro EFI (50psi to 130psi) and Pro M (50psi to 100psi) for Mechanical Pump Systems.
